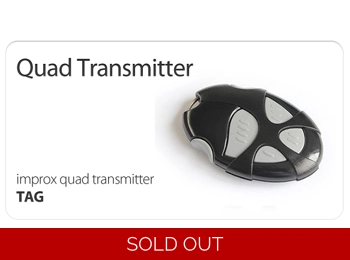

BPT impro RF transmitter key fob xqt/904

The Impro (QT) Quad Transmitter is a 4-channel, hand-held, 433.92 MHz transmitter as well as a passive key ring Transponder Tag.

The Transmitter is designed for use with the Impro Quad Receiver and with the Impro range of access control products.

Each of the four Push-buttons is used to transmit a different channel identification code, together with the Transmitter's ID, to the Receiver.

The Impro (QR) Quad Receiver receives the data transmitted by the Quad Transmitter. The Receiver then outputs the RF Tag ID and button data to for decoding by any connected IXP220 Controller, IXP20 Controller, Impro (iTRT) Intelligent Twin Remote Terminal, Impro (MfT) Multifunction Terminal or Impro (TA) Time Attendance Terminal.

For entry-level installations, the Quad Receiver is connected via SBus to the UniScan (1 relay activated by any one of the four buttons) or FlexiScan Controller (four relays mapped to the buttons on the Quad Transmitter).

The Quad Transmitter can also work as a passive, read only, 125 kHz Tag for use with the Impro range of Readers. In this application, the Push-buttons are not used.

An internal 3 V CR2032 lithium coin cell Battery powers the Transmitter.

Features

• Dynamic Code Transmission Technology
• Small and rounded, gentle on your pockets
• Operates from its own power source (an internal 3 V CR2032 lithium coin cell Battery)
• Transmits its own identity and each Push-button has a code identity
• The Receiver interfaces to access control systems, for example, IXP20, IXP220 or IXP300 and IXP400.
• Operates four separate devices, for example, opening a gate
• Button Mapping: When used with the Impro Quad Receiver and a single Impro (iTRT) Intelligent Twin Remote Terminal (XRT910-0-0-GB-XX, XRT920-0-0-GBXX, IPS920-0-0-GB-XX or IPS921-0-0-GB-XX), two Push-buttons on the Impro (QT) Quad Transmitter are mapped. Use all four of the Impro (QT) Quad Transmitters Push-buttons, by connecting two Impro (iTRT) Intelligent Twin Remote Terminals (XRT910-0-0-GB-XX, XRT920-0-0-GBXX, IPS920-0-0-GB-XX or IPS921-0-0-0GB-XX), to the Impro Quad Receiver. Refer to the Installation Manual for more information on this feature.
• With the Quad Receiver connected to FlexiScan Controller, the four buttons are each mapped to a corresponding relay.
• With the Quad Receiver connected to a UniScan Controller, all four buttons are mapped to a single relay.
• Maximum reliable UHF transmitter range is between 20 and 50 m (22 and 55 yd), this is increased to between 50 and 100 m (55 and 109 yd) when used in direct line of sight with the Impro Quad Receiver (HRF900-0-1-GB-XX, HRF901-0-1-GB-XX)
• RF passive range of 12mm to 50mm (0.5in to 2in)
