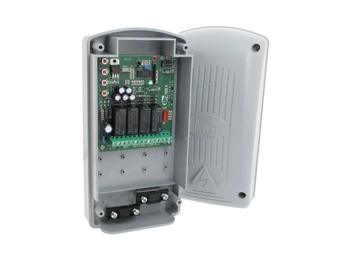

CAME RBE4N 4 channel receiver

CAME RBE4N 4 Channel Receiver

The CAME RBE4N quad channel radio receiver allows the remote control of electric and electronic devices when coupled with one or more transmitters.

4 Channel to enable four seperate devices to be operated and has the possibility of a latching contact for hold open commands.


Power supply: 12/24V AC/DC
Max consumption: 5W
Transmitters frequency: 433.92mhz  or 868.35 requires frequency card
Working temperature: 10÷55°C
Capacity in open space: 50-100m
Protection rating: IP 54

Compatible with the following remotes:
TOP432NA
TOP434NA
TOP432A
TOP434A
TOP432S
TOP432EV
TOP434EV
TWIN2
TWIN4
TOP862NA
TOP864NA


NOTE:
This receiver can work with any frequency of CAME fixed code remotes for this reason you must choose which frequency you require by purchasing a radio card which plugs into this unit. The most popular frequency is 433.92MHz which will require an AF43S radio card to enable use of the TOP432S/M/NA & TOP434NA/M remotes.

---
